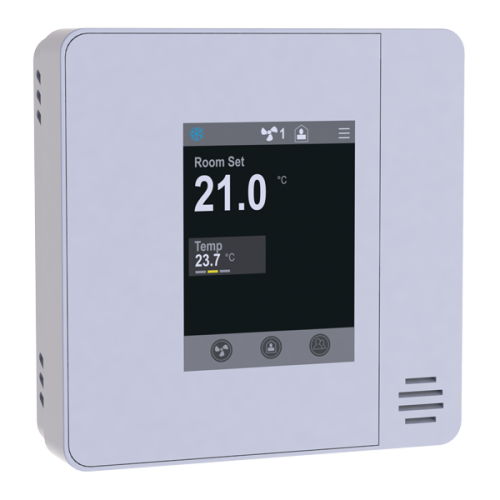

The TDR20 touchscreen colour room interfaces provide attractive user interface. The interfaces can be customised to meet the project requirements through the configuration tools. The TDR20 interfaces can display the system status, can be used to set the operating mode, temperature setpoint, fan speed and boost the operation. The interfaces have 5 display locations that can be customised to show the setpoints, measurement and other information such as outside air temperature and energy consumption figures.

The TDR20 user interfaces have built-in temperature measurement and can have additional VOC (Volatile Organic Compounds), Relative Humidity or PIR Occupancy sensors.

The TDR20 touchscreen room interface addressing can be set through the display. Furthermore the display can be customised using Windows Device Configuration Tool or SmartConfig  app. The TDR20 user interfaces are available in white and black (in addition to the touchscreen colour skins).
Technical
Measurements
  • Temperature Measurement
Optional Measurements
  • Relative Humidity (-RH Option)
  • Relative Humidity and VOC Volatile Organic Compounds (-RH-VOC Option)
  • Movement / Occupancy (-OE Option)
Communication Protocol Modbus Communication to the TCR80 Series Controllers
Power Supply 5Vdc (supplied via USB-C cable or via terminal wiring)
Country of Origin

United Kingdom

TDR20 Touchscreen Room Interfaces, Temperature

  • Product Code: TDR20-MOD
  • SKU: 2000 1
  • Availability: 2-3 Days

  • £112.00
