TER10 Smart Modbus Room Temperature Sensor
Description
Specification
Documentation
Wiring
The TER10 Smart Modbus Temperature sensors have been designed for measuring room temperature in modern buildings. The TER10 Modbus sensors can have additional PIR Occupancy sensor for monitoring the room for the occupancy and movement. With LoraWan option the sensors can connect wirelessly to the IoT or the Building Management Systems.
The sensors have 2 x Universal Inputs (NTC10 resistance, 0-10V and digital), 4 x 0-10Vdc outputs and optional 24V relay output. The outputs can be used to send the measurement signals to BMS and other building controllers. If using external 0-10V measurements, the signals can be scaled to match the controller temperature ranges. The inputs and outputs can also be controlled over the network, making the device operate as intelligent Modbus I/O-module.
With LCD colour display option the sensor can be used to indicated measurements and status of the control system. The measurement locations, descriptions, language etc. can be configured to suit the requirements. The sensor can also display parameters such as energy and water consumption readings.

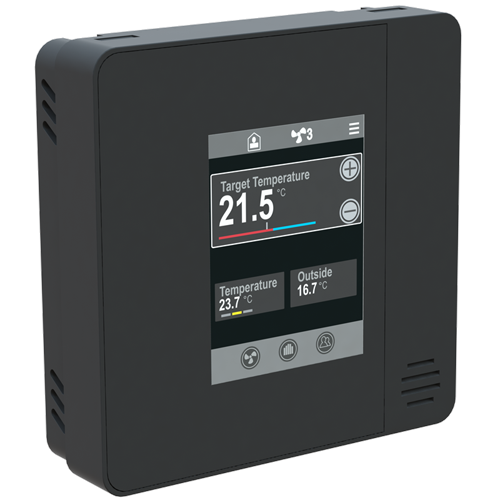

The TS colour touchscreen option converts the smart sensor to operate also as the Room Interface Panel. The sensor can display measurements and energy readings, as well as it can be used to change the system setpoints, override the boost (timed) on/off, configure the fan speed levels and the operating modes. The display can be locked from unauthorized use.
The smart sensors also incorporate 2 x PI control loops that can be used e.g. to control 2 zones of heating.
The LCD and TS skin colours can be changed to suit the building decor. In addition the smart sensors are available in black and white. The sensors are mounted on the wall surface directly or to standard wall mounting boxes. The sensors have built-in Modbus RS485 communication that allow interaction to the BMS systems (Building Management Systems). Optional Bluetooth wireless interface provides connection to Smart Phone App interface (iOS).
The TER10 Modbus sensors can be configured using Windows Device Configuration Tool (connected wirelessly using Bluetooth) or from SmartConfig iOS app. For ease of commissioning the sensor address can also be set from the bit switch or from the touchscreen.
Technical
Measurements
Room Temperature
Optional Measurements
Movement / Occupancy (-OE Option)
Control Functions
2 Independent PI Control Loops
Communication Protocol
Modbus RS485 Communication Protocol, RS485 Over-Voltage Protected
Power Supply
24Vac/dc
Universal Inputs
2 x Universal Inputs (NTC10, 0-10V, Digital Volt-Free)
Analogue Outputs
4 x Analogue 0-10Vdc Outputs, Max 2mA
Digital Outputs
Optional 1 x 24V Relay Output (-RL Option)
xER Data Sheet (EN) (3.13MB)
TER10 Smart Modbus Room Temperature Sensor
Product Code:
TER10-MOD
SKU:
1200 1
Availability:
2-3 Days
£83.00
Available Options
Interface
No Interface
-LCD Colour Display (+£39.00)
-TS Colour Touchscreen (+£57.00)
-BLE Bluetooth App (+£57.00)
-LCD-BLE Display and Bluetooth (+£96.00)
-TS-BLE Touchscreen and Bluetooth (+£113.00)
-LRA LoraWan, 868MHz (+£57.00)
-LCD-LRA Display and LoraWan, 868MHz (+£96.00)
-TS-LRA Touchscreen and LoraWan, 868MHz (+£113.00)
Extra Measurements
No Extra Measurements
-OE Movement Sensor (PIR) (+£52.00)
Extra Outputs
No Extra Outputs
-RL 24V Relay Option (+£22.00)
Colour
-B Black
-W White
