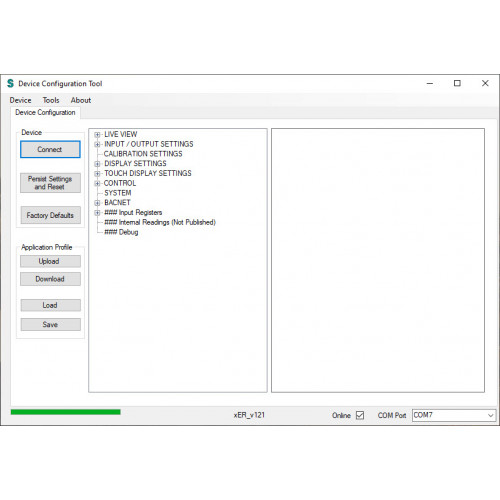

The Device Configuration tool is MS Windows based configuration tool that can be used for the Smart Room Sensor and Touchscreen Room controller configuration. The software is connected wirelessly to the devices using two Bluetooth dongles (BLE-TOOLSET) or via USB-SERIAL cable connection.

Using the tool the device configuration can changed to the site requirements, and a backup can be stored in the local computer. Using backups it is easy and fast to copy configuration from one device to other in case where multiple same type of devices are deployed on the project.

• Windows 10/11 based Device Configuration Tool
• Used for the xER (QER/TER/MER/VER) sensor and xCR (QCR10/TER10/QCR11/TER11) controller configuration
• On connection the appropriate Device Template is automatically loaded

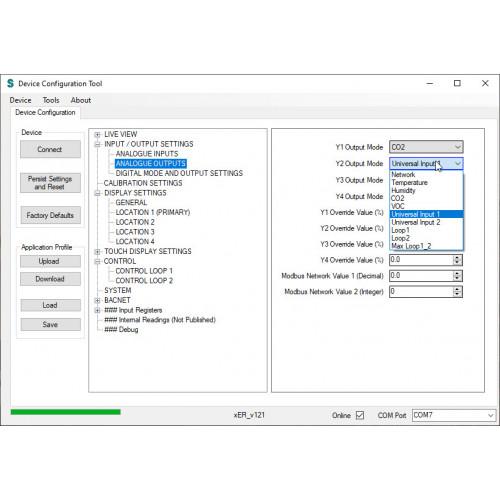

• Simple to use menu structure for device configuration
• Consistent structure to product documentation
• Upload, download  and save the configuration files to the computer e.g. on multi-product installation and/or back-up
• Offline configuration mode allows configuration without a connection to the device
• Option to load specific Device Template files
• Allows Language Packs to be loaded to the Device

Download the latest version from the Downloads tab including:-

• v1.0.0.23 Software
• xCR1 json file v1.41 (TCR/QCR10/11 controllers)
• xER json file for v1.33 (TER10, MER10, VER10, QER10 sensors)
• xCR0 json file v1.01 (TCR4/QCR4 controllers)
